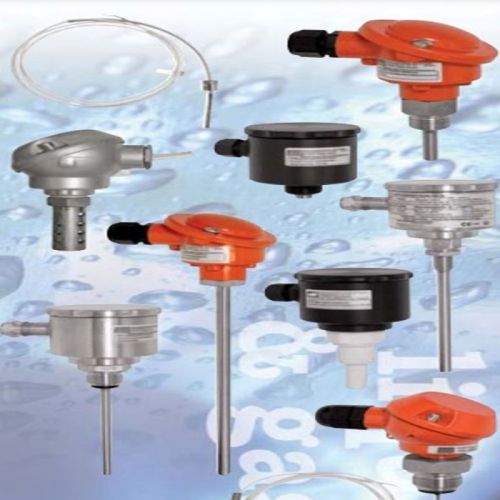

RTD Sensor

Technical data Measuring element: Platinum resistance element Pt100 / Pt1000, others on request Temperature ranges: at the tip: -70 ° C. .. +300 ° C ; +500 ° C / +600 ° C and low temperature version on request Tolerenzklasse: AA, A, B - IEC 60751 Signal: - 1x Pt100: 2 -, 3 -, 4-wire circuit - 2x Pt100: in 2x 2x 2-wire or 3-wire circuit - Pt100 3x: 3x in 2-wire circuit - Free wire ends for self-installation of a head transmitter - Head Transmitter, 4 .. 20mA / 0 .. 10V output, standard, Ex, Connections: - terminal compartment in aluminum, plastic or stainless steel housing - Fixed connection cable - shielded PTFE, silicone, PVC, Fiberglass with steel mesh, others on request ; - Lemo System, M12 system Materials Materials (process side): - protective tubes made of seamless stainless steel 1.4571 (AISI 316Ti) - Flanges, process connections: 1.4571 (AISI 316 Ti) - Special materials on request Materials (connection side): - Housing: aluminum, stainless steel, polypropylene PP, POM polyoxymethylene ; - Cable Material, see "Connection"
