Smallest Magnetostrictive Sensor

12,970.00 - 45,680.00 / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Trader
Measuring range 50~2000mm
Operating Voltage 24VDC (-15/+20%) overvoltage protection, reverse polarity protection
output signal 4~20mA, 0~10Vdc,0~5Vdc,
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Performance
Non-linearity <±0.05%F.S, repeatability <±0.002%F.S
Resolution
16-bit D/A
Operating temperature
- 40℃~+85℃
Stem material
Stainless steel 304, 316
Measuring rod pressure
35MPa continuous/70MPa peak
Protection class
IP65

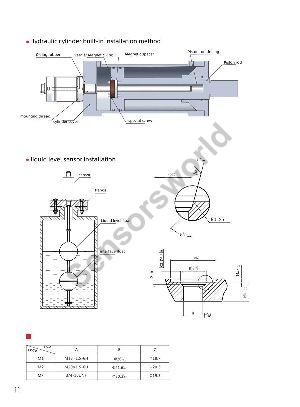

Installation method
Cylinder built-in installation, extrusion installation
Way out
Straight out cable or ,M12*1 connector

Smallest Magnetostrictive Sensor





♦ hydraulic control system, metallurgical equipment, wind power generation


♦ engineering machinery, rubber machinery


♦ port machinery, injection molding machine


♦ hydroelectric power stations, solar power plants, real-time monitoring of the reflection angle


♦ flight simulator





Features :





• Built-in cylinder, the smallest volume, suitable for compact cylinders


• Completely replaces potentiometers and inductive displacement


• Non-contact measurement, never wears out


• Absolute position output, no need to return to zero


• Nonlinearity, less than ±0.05% of full scale


• Repeatability, better than ±0.002% of full scale

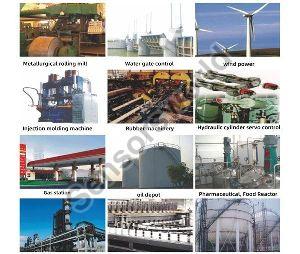

Application





♦ hydraulic control system, metallurgical equipment, wind power generation


 ♦ engineering machinery, rubber machinery


 ♦ port machinery, injection molding machine


 ♦ hydroelectric power stations, solar power plants, real-time monitoring of the reflection angle


 ♦ flight simulator
