Hydraulic Cylinder Linear Position Sensor

Hydraulic Cylinder Linear Position Sensor
Price : 12,970.00 - 45,680.00 / Piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier, Importer
Measuring range 50~5000mm
Performance Non-linearity < ±0.01%F.S. (minimum ±50μm), repeatability < ±0.001%F.S. (minimum ±1μm)
Operating Voltage 24VDC (-15/+20%) overvoltage protection, reverse polarity protection
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Working current
<60mA (varies with the range)
Installation method

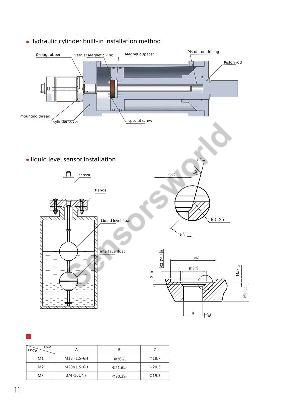

Cylinder built-in installation, M18*1.5, M20*1.5, 3/4-16UNF or customized
Protection class
IP67 or IP68
Operating temperature
- 40℃~+85℃
Stem material
Stainless steel 304, 316
Measuring rod pressure
35MPa continuous/70MPa peak

Hydraulic Cylinder Linear Position Sensor


*Robust and reliable, oil and dirt resistant


*Non-contact measurement, never wear


*Absolute output, no need to return to zero


*Easy to diagnose, LED lights show real-time status Modular design, easy to replace


*Low-power design, effectively reducing system temperature drift





Features :


  *Robust and reliable, oil and dirt resistant


  *Non-contact measurement, never wear


  *Absolute output, no need to return to zero


  *Easy to diagnose, LED lights show real-time status Modular design, easy to replace


  *Low-power design, effectively reducing system temperature drift
